Technical Data 技術參數

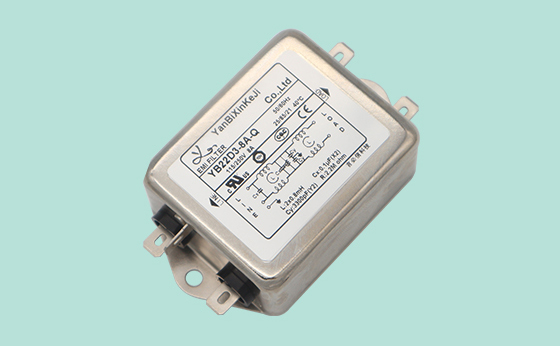

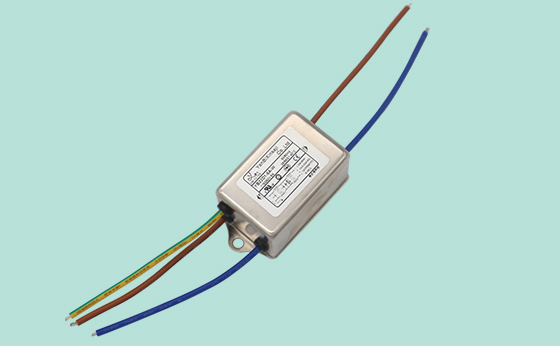

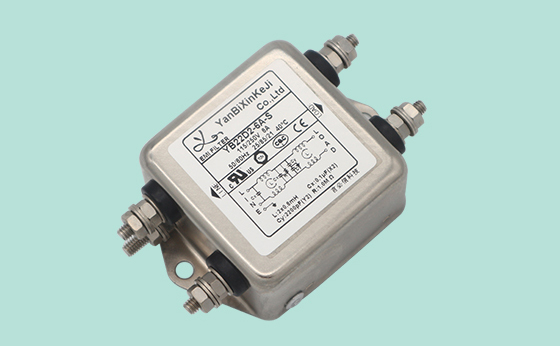

YB22 two-stage filters are designed for noisy applications requiering good differential and common-mode attenuation.

YB22設計兩級濾波，有著良好的差模和共模衰減.

Various terminal options allow you to select the desired connection style.

--有多種端子類型可供選擇

There are a variety of parts and combinations to meet different customers' EMC tests

--有多種零件組合搭配，來滿足不同客戶整機EMC測試

Customized products according to customers' requirements

--可按客戶要求定制不同規格產品

Typical Applications 應用范圍

Electrical and electronic equipment

--電子電氣設備

Medical equipment

--醫療設備

Industrial applications

--工業應用

Building automation

--建筑自動化

Office automation and datacom equipment

--辦公自動化設備和數據通訊設備

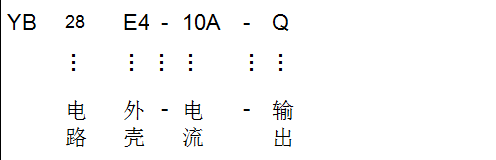

命名原則說明

Tabulates 產品列表

Model No.

Rated Current @40°C 額定電流

Terminal  Options* 輸出方式

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB22E4-1A

1A

Q

S

W

<0.8mA

Fig.1

115/250V

50/60Hz

YB22E4-2A

2A

Q

S

W

Fig.1

YB22E4-3A

3A

Q

S

W

Fig.1

YB22E4-4A

4A

Q

S

W

Fig.1

YB22E4-6A

6A

Q

S

W

Fig.1

YB22E4-8A

8A

Q

S

W

Fig.1

YB22E4-10A

10A

Q

S

W

Fig.1

YB22E4-15A

15A

Q

S

-

Fig.1

YB22D1-1A

1A

Q

-

W

Fig.1

YB22D1-2A

2A

Q

-

W

Fig.1

YB22D1-3A

3A

Q

-

W

Fig.1

YB22D1-4A

4A

Q

-

W

Fig.1

YB22D1-6A

6A

Q

-

W

Fig.1

YB22D2-6A

6A

Q

S

W

Fig.1

YB22D2-8A

8A

Q

S

W

Fig.1

YB22D2-10A

10A

Q

S

W

Fig.1

YB22D2-15A

15A

Q

S

-

Fig.1

YB22D3-8A

8A

Q

S

W

Fig.1

YB22D3-10A

10A

Q

S

W

Fig.1

YB22D3-15A

15A

Q

S

-

Fig.1

YB22D4-10A

10A

Q

S

W

Fig.1

YB22D4-15A

15A

Q

S

-

Fig.1

YB22D4-20A

20A

Q

S

-

Fig.1

YB22D5-15A

15A

Q

S

-

Fig.1

YB22D5-20A

20A

Q

S

-

Fig.1

YB22D5-30A

30A

-

S

-

Fig.1

YB22D6-20A

20A

-

S

-

Fig.1

YB22D6-30A

30A

-

S

-

Fig.1

YB22F1-20A

20A

-

S

T

Fig.1

YB22F1-30A

30A

-

S

T

Fig.1

YB22F2-30A

30A

-

S

T

Fig.1

YB22F2-40A

40A

-

S

T

Fig.1

YB22F2-50A

50A

-

S

T

Fig.1

YB22F3-50A

50A

-

S

T

Fig.1

醫療專用產品列表

Model No.

Rated Current @40°C 額定電流

Terminal Options 輸出方式

Medical  equipment 醫療專用 5

Leakage current  250V/50Hz 漏電流

Electrical  Schematic 電路圖

Rated  Voltage(V)     額定電壓

Operating  Frequency(Hz) 工作頻率

型號

YB22E4-1A-x(5)

1A

Q

S

W

5

<5μA

Fig.2

115/250V

50/60Hz

YB22E4-2A-x(5)

2A

Q

S

W

5

Fig.2

YB22E4-3A-x(5)

3A

Q

S

W

5

Fig.2

YB22E4-4A-x(5)

4A

Q

S

W

5

Fig.2

YB22E4-6A-x(5)

6A

Q

S

W

5

Fig.2

YB22E4-8A-x(5)

8A

Q

S

W

5

Fig.2

YB22E4-10A-x(5)

10A

Q

S

W

5

Fig.2

YB22E4-15A-x(5)

15A

Q

S

W

5

Fig.2

YB22D1-1A-x(5)

1A

-

-

W

5

Fig.2

YB22D1-2A-x(5)

2A

-

-

W

5

Fig.2

YB22D1-3A-x(5)

3A

-

-

W

5

Fig.2

YB22D1-4A-x(5)

4A

-

-

W

5

Fig.2

YB22D1-6A-x(5)

6A

-

-

W

5

Fig.2

YB22D2-6A-x(5)

6A

Q

S

W

5

Fig.2

YB22D2-8A-x(5)

8A

Q

S

W

5

Fig.2

YB22D2-10A-x(5)

10A

Q

S

W

5

Fig.2

YB22D2-15A-x(5)

15A

Q

S

-

5

Fig.2

YB22D3-8A-x(5)

8A

Q

S

W

5

Fig.2

YB22D3-10A-x(5)

10A

Q

S

W

5

Fig.2

YB22D3-15A-x(5)

15A

Q

S

-

5

Fig.2

YB22D4-10A-x(5)

10A

Q

S

W

5

Fig.2

YB22D4-15A-x(5)

15A

Q

S

-

5

Fig.2

YB22D4-20A-x(5)

20A

Q

S

-

5

Fig.2

YB22D5-15A-x(5)

15A

Q

S

-

5

Fig.2

YB22D5-20A-x(5)

20A

Q

S

-

5

Fig.2

YB22D5-30A-x(5)

30A

-

S

-

5

Fig.2

YB22D6-20A-x(5)

20A

Q

S

-

5

Fig.2

YB22D6-30A-x(5)

30A

-

S

-

5

Fig.2

YB22F1-20A-x(5)

20A

Q

S

T

5

Fig.2

YB22F1-30A-x(5)

30A

-

S

T

5

Fig.2

YB22F2-30A-x(5)

30A

-

S

T

5

Fig.2

YB22F2-40A-x(5)

40A

-

S

T

5

Fig.2

YB22F2-50A-x(5)

50A

-

S

T

5

Fig.2

YB22F3-50A-x(5)

50A

-

S

T

5

Fig.2

*Q: Fast-on 6.35x0.8mm     S: solder 4.0x0.8mm     W: Wire UL1015 18AWG

Electrical schematic 電路圖

                            Standard type                                                       5 type

                                 Fig.1                                                                Fig.2

Mechanical Dimension外形圖(Unit: mm)

Insertion loss table(In 50ohm system according IEC/CISPR No.17)插入損耗(50歐姆測試系統，IEC/CISPR No.17)

 ——————    共模(common mode)             — — — — —   差模(differential mode)

                            1A                                                                   3A

                            6A                                                                     10A
